ASME Non-piping calibration block ASME Sec V T-434.2.1

Short Description:


Product Detail

Product Tags

IMG_5703IMG_5729
ASME Basic Calibration Block is used for establishment of primary reference responses for UT examination of welds. ASME Basic Calibration Block 1 contains three side-drilled holes at 38mm deep minimum at 2.5mm diameter. the hole locations through the thickness are 1/4, 1/2 and 3/4 T. it also contains 2 EDM notches measuring 2% T deep * 6.4mm max wide * 25 long min. In accordance with ASME Sec V T-434.2.1

Weld Thickness(mm) Block Dimension(mm)
Thick*Wide*Long
NetWeight GrossWeight Packing

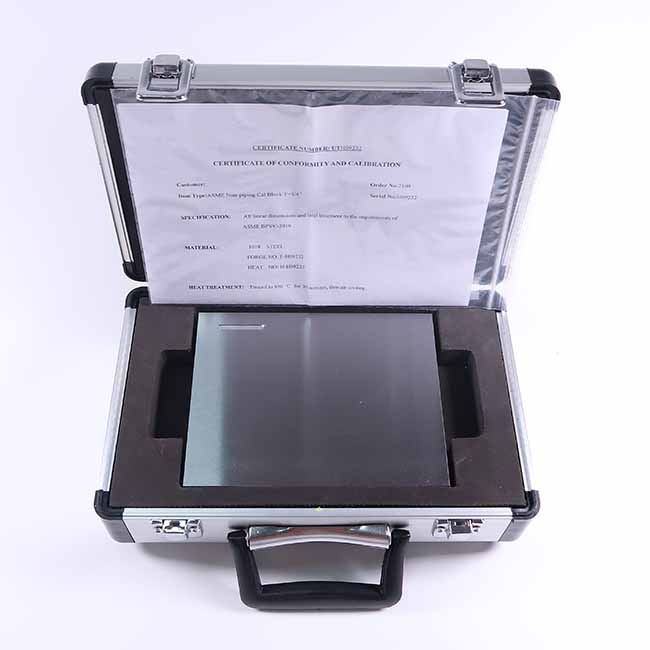

Up to 25 19*150*150 3.5 4.5 IMG_5689
Over 25 through 50 38*150*200 9 10
Over 50 through 100 75*150*250 23 24
Over 100 125*150*381 58 62

All standard blocks can be customized per request!

ASME1ASME2
