TMTECK—HD95 Holiday Detector Intelligence Pulsed High Voltage Porosity Detector 1KV~50KV

Short Description:


Product Detail

Product Tags

TMTECK—HD95 holiday detector is intelligence pulsed high voltage protecting coating quality detector. It install anti-jamming intelligent chip, anti-jamming LED screen and brand new digital control circuit to make a accurately high voltage output ±(0.1KV+3%reading).It  can adjust its value of voltage according to the thickness of protecting coating. HD-95 use lithium battery for power source, it is also can be used in field.

IMG_4942 2IMG_4945 2

Parameter

Test voltage range 1KV~50KV
Thickness range 0.1~36.5mm
High voltage output Pulse
Voltage display 3 digit
Resolution 0.1KV
Voltage precision ±(0.1kv+3%)
Max leak record 999 maximum
Way of alarming Headphone buzzer and light
Shutdown Auto and Manual
Display 128*64 LED screen with backlight
Power ≤6W
Size 240mm*165mm*85mm
Battery 12V 4400mA
Working time ≥12 hours(Max voltage)
Charging time ≈4.5 hours
Voltage of adapter Input AC 100-240VOutput 12.6V 1A
Probe wire Close to 1.5m

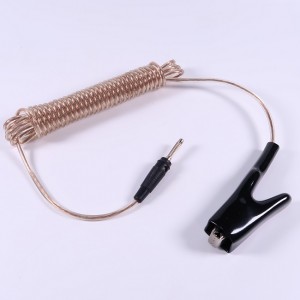

Earth lead wire 2*5m  black/black
Fuse 1A

IMG_4947 2IMG_4960 2

Standard configuration :

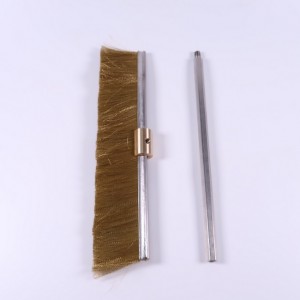

Main unit , high-voltage probe, probe connecting cable, fan-shaped probe brush, flat brush, connecting rod, grounding wire, charger, strap, magnetic grounding pole, ABS carrying case, manual, certificate, warranty card, fuse
