Tmteck Ultrasonic Hardness tester TM-U3

Short Description:


Product Detail

Product Tags

IMG_6288

TM-U3 ultrasonic hardness tester can nondestructively measure the metals and alloys with a minimum thickness of 3 mm. It can measure strip/plate workpiece, mold hardened
layer, blade hardened layer, tooth surface hardened layer, flange edge, wheel, turbine rotor, thin plate, shaft and pipe, container, knife edge, welding part, etc.

IMG_6263IMG_6276



Product Details

● Nondestructive hardness tester for testing hardened layer and thin workpieces
● 3.5-inch color LCD screen
● It indicates the battery status and alarms in low battery
● Conversion of common hardness sales (HV, HB, HRC)
● Hardness value calibration and delete calibration
● Select the tested material, mainly steel and cast steel. After calibration with the standard test block, it can measure alloy tool steel, special cast iron and non-ferrous metals
● Large memory: built-in 8G SD card.
● Free measurement in all directions, no compensation is needed.
● It can display the maximum value, minimum value, average value, standard deviation, measurement times, previous measurement values, etc.
● Upper/lower limits setting and alarm when out of the limits
● Rechargeable lithium ion battery, continuous working time is more than 30 hours
● Portable stand to enhance the measurement accuracy

NDT certificate

Specifications

Model TM-U3
Loading force 10N
Measuring range 80~1042HV; 100-450HB; 20-70HRC
Measuring accuracy ±4%(<500HV)
±5%(500HV~800HV)
±6%(>800HV)
Repeatability 8%(<250HV); 6%(≥250HV)
Indenter vickers diamond indenter
Measuring direction Support 360°
Hardness scale HV, HB, HRC
Operating environment Temperature:-10℃~50℃;
humidity: 30%~80% R.H
Dimensions (mm) 170x75x40
Weight (g) 500



Standard Delivery

● Main unit

● 10N manual probe

● Standard test block

● V-shape base

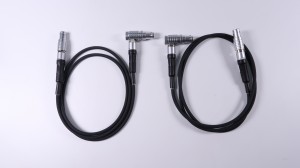

● Probe cable

● Charger

● TMTeck certificate

● Warranty card

● Instruction manual

Optional Accessory

● Optional Stand
