TS29 R4 Concave probe

Short Description:


Product Detail

Product Tags



TS29

TS29 R4TS29 R4-2

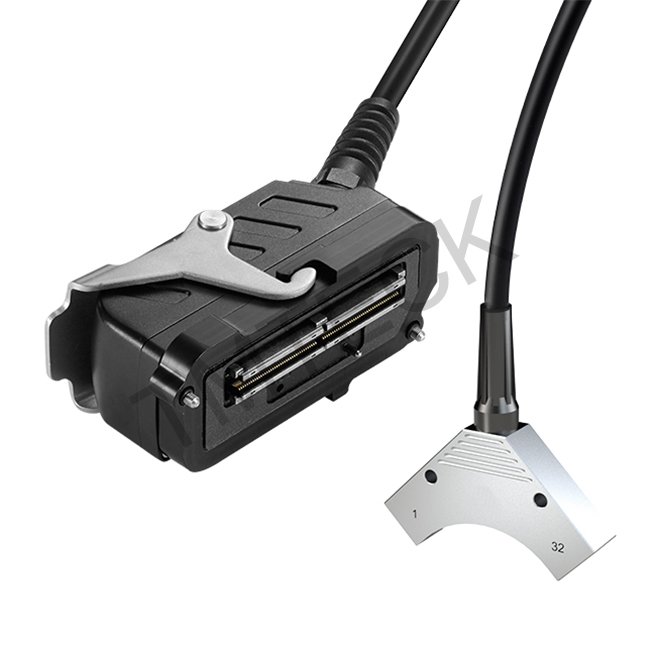

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

Probe
Series

Model

Compatible

Model

Element
 Shape

Freq (MHz)

E-Nos

Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

Size(LxWxH)

TS29/R4

2.25C32-1.35×8

2.25C32-43.2x8

Concave

2.25

32

1.35

43.2

8.0

43x14x43

(mm)

1.69×0.55×1.69

(in)

3.5C32-1.35×8

3.5C32-43.2x8

Concave

3.5

32

1.35

43.2

8.0

5C32-1.35×8

5C32-43.2x8

Concave

5

32

1.35

43.2

8.0

10C32-1.35×8

10C32-43.2x8

Concave

5

32

1.35

43.2

8.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include  frequency, element number and pitch,etc.



Quick Details

Model Number:5C32-1.35×8-TS29/5C32-43.2x8-R4

Element:32

Element Shape:Concave

Size:R25,LxWxH 43x14x43(mm)1.69×0.55×1.69(in

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1

NDT certificate

NDT1

NDT2
